Fully automatic scrap clothes recycling machine clothes fabric cutting machine plastic paper cutter
Advanced harvesting solution for large-scale agriculture
Fully automatic scrap clothes recycling machine clothes fabric cutting machine plastic paper cutterBrief introduction :This scrap clothes cutting machinecan quickly cut up all kinds ofclothes ,scrap cloth, wastecottonyarn, chemical fiber, linen, leather, paper, non-woven fabr
Key Features
Model
CZ-1600
Capacity
1000-2000kg/h
ISO 9001 Certified
1 Year Warranty
Global Shipping
After-sales Support
Technical Specifications
Model | CZ-1600 |
Cutting motor | 15kw-8 |
Conveyor motor | 2.2kw-4 |
Voltage | 380v 50hz 3phases |
Triangular belt | C*3550mm |
Capacity(kg/h) | 1000-2000 |
Input conveyor belt (mm) | 2800*680 |
Output | 2800*680 |
Cutting size(mm) | 40mm wide strips |
Spinning blade number | 4(adjustable) |
Fixed blade number | 1(double-edged) |
Dimension (mm) | 6200x1600x1500 |
Weight(kgs) | 1760 |
Fully automatic scrap clothes recycling machine clothes fabric cutting machine plastic paper cutter
Brief introduction :
This scrap clothes cutting machine can quickly cut up all kinds of clothes ,scrap cloth, waste cotton yarn, chemical fiber, linen, leather, paper, non-woven fabrics,plastic and other materials.It is the main machine of the waste clothes and fiber recycling.
It will cut clothes/paper/fabric into strips 25mm,50mm and 75mm or 3mm,6mm,9mm and so on.
Final products pictures:
Features :
1, Easy to operate and maintenance.
2, integral cast steel knives make sure the machine is durability, security design ,Ensure safe and smooth production .
3, The final product size can be customized based on your requirements.
4, Powerful, can deal with different kinds of materials.
5,Install the wheel ,easy to move .
6, We have different models ,make it suitable for different customers.
7, The final product can be strips or the very small pieces .
Technical data:
Model | CZ-1600 |
Cutting motor | 15kw-8 |
Conveyor motor | 2.2kw-4 |
Voltage | 380v 50hz 3phases |
Triangular belt | C*3550mm |
Capacity(kg/h) | 1000-2000 |
Input conveyor belt (mm) | 2800*680 |
Output | 2800*680 |
Cutting size(mm) | 40mm wide strips |
Spinning blade number | 4(adjustable) |
Fixed blade number | 1(double-edged) |
Dimension (mm) | 6200x1600x1500 |
Weight(kgs) | 1760 |

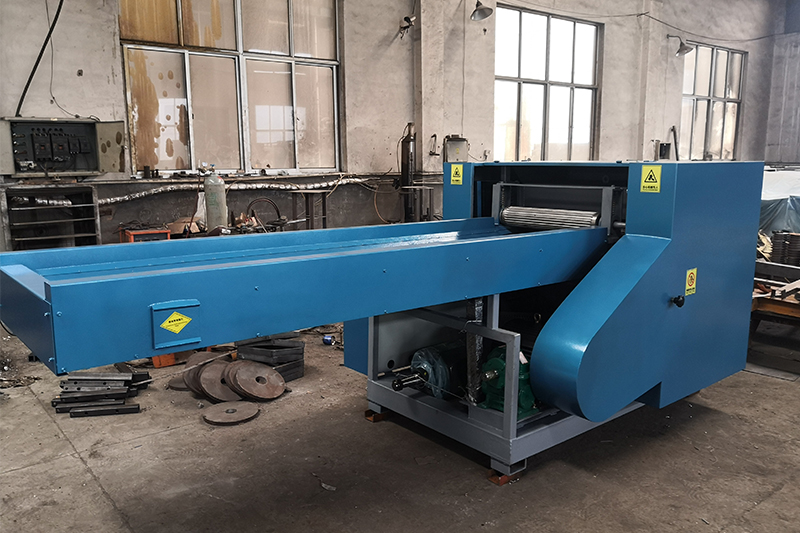

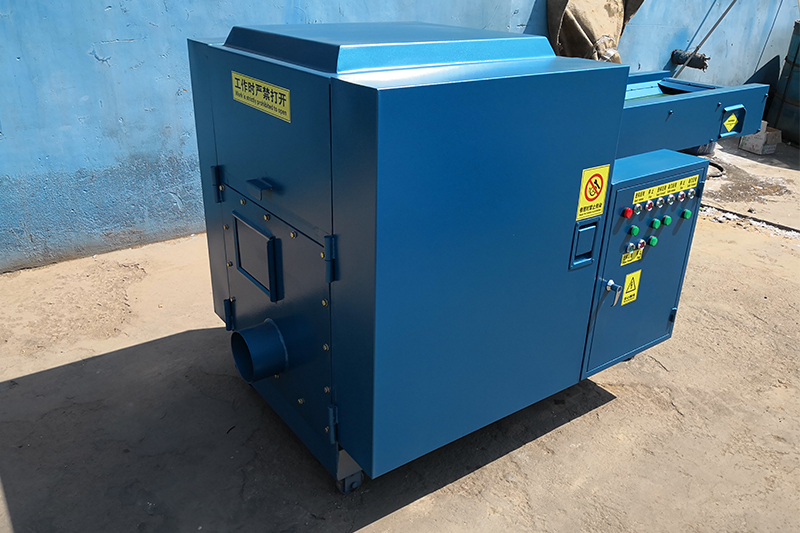

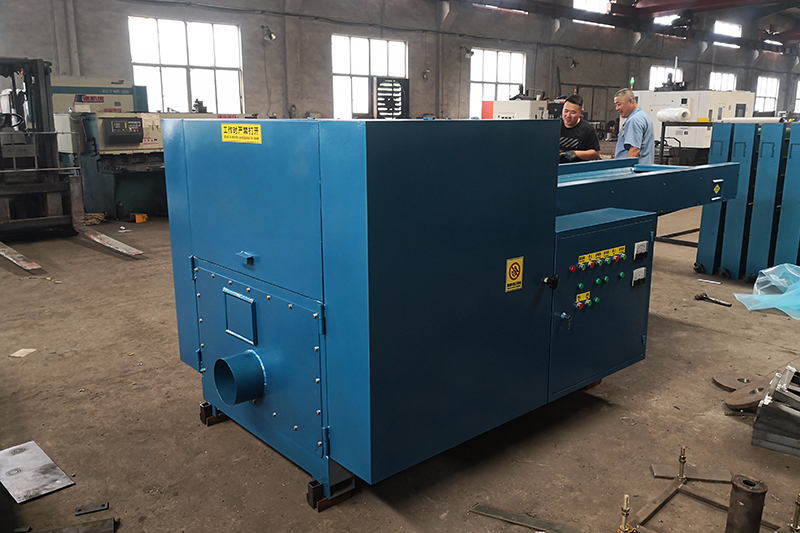

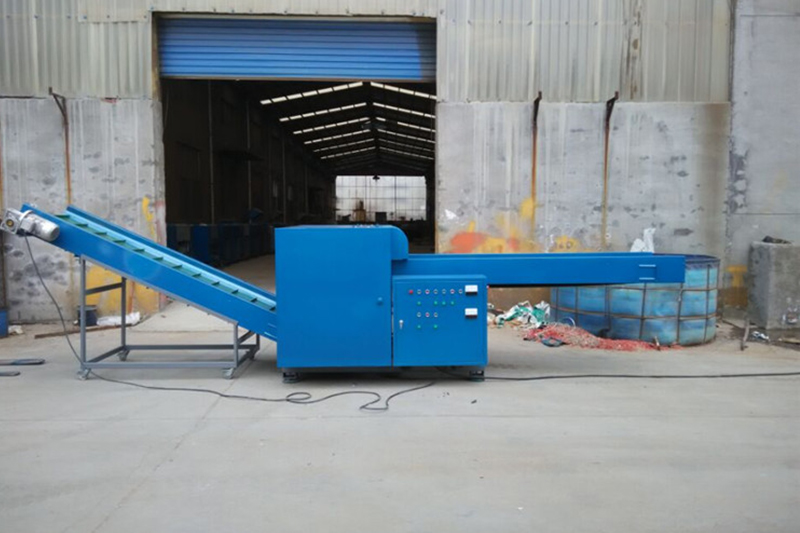

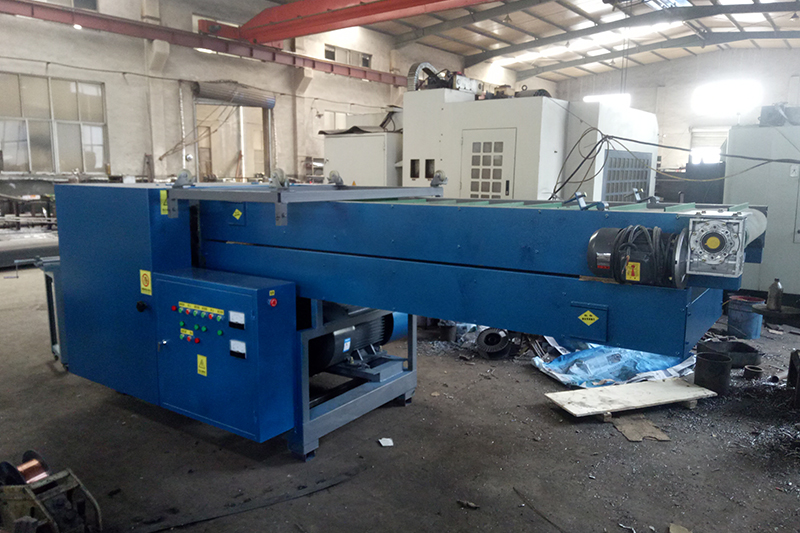

Pictures:
1, Easy to operate and maintenance.
2, integral cast steel knives make sure the machine is durability, security design ,Ensure safe and smooth production .
3, The final product size can be customized based on your requirements.
4, Powerful, can deal with different kinds of materials.
5,Install the wheel ,easy to move .
6, We have different models ,make it suitable for different customers.
7, The final product can be strips or the very small pieces .
2, integral cast steel knives make sure the machine is durability, security design ,Ensure safe and smooth production .
3, The final product size can be customized based on your requirements.
4, Powerful, can deal with different kinds of materials.
5,Install the wheel ,easy to move .
6, We have different models ,make it suitable for different customers.
7, The final product can be strips or the very small pieces .
Support & Service
We provide comprehensive after-sales support to ensure your investment delivers maximum value:
- Warranty: 1-year comprehensive warranty on all parts
- Training: Free operator training at our facility or your location
- Spare Parts: Guaranteed availability of spare parts with 24-hour emergency service
- Technical Support: 24/7 technical support hotline
- Service Network: Global service network with certified technicians
- Maintenance Plans: Customized maintenance plans available
Delivery & Installation
We handle complete delivery and installation services:
- FOB or CIF shipping options available
- Professional installation and commissioning
- On-site testing and performance verification
- Documentation and compliance assistance
